Torque Rg-2 Trailer Relay Valve (Replaces Haldex Midland Kn28510 Kn28510N Kn28510X Velvac 034057) (Trkn28520)

Description

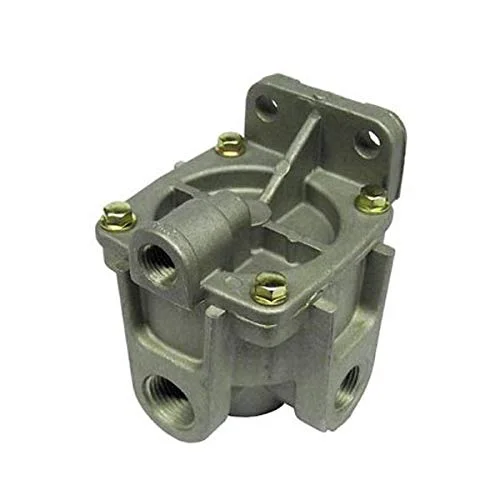

Rg-2 Trailer Relay Valve

– A Fast Relay Used To Apply And Release Service Brakes On Tractor Or Trailer.
– Compact Size.

Replaces:
Euclid: Emdkn28510N
Haldex: Kn28510X, Kn28510, N30108Ak
Midland: Kn28510, N30108Bl
Mack: 5396Kn28510
Velvac: 034057, 34057

Specifications:
Supply Port-A: 1/2′
Supply Port-B: 1/2′
Delivery Port-C: 1/2′
Delivery Port-D: 1/2′
Control Position: 90?
Plugs Included: 1 @ 1/2′
Width: 3-1/2′
Length: 3-1/2′
Height: 3-5/8′
Contol Port: 1/4′
Cracking Pressure: 5.6 ? 1.0 Psi
Mounting Holes (2): .34′ Diameter On 1.50′ Centers
Approximate Weight: 1.5 Lbs.
