Description

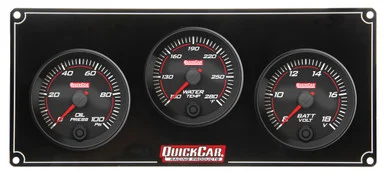

Real-time engine monitoring is non-negotiable in high-performance racing and tuning. This three-gauge panel consolidates your most critical parameters—oil pressure, coolant temperature, and electrical system voltage—into a single, easy-to-read assembly, eliminating guesswork and protecting your investment. The integrated warning system gives you instant visual feedback when any parameter drifts out of the safe zone, allowing you to catch issues before they become catastrophic.
QuickCar’s Redline panel ships pre-wired with all necessary sending units, making installation straightforward for both professional shops and experienced DIY builders. Whether you’re running a street-legal performance build or a dedicated race car, this gauge package delivers the data you need to keep your engine healthy and performing at its peak.
- Oil Pressure: 0-100 PSI
- Water Temperature: 100-280°F
- Voltmeter: 8-18V
- Gauge Diameter: 2-5/8″
- Electric stepper motors
- White backlight standard
- Red warning light (oil pressure)
- Blue warning light (water temperature)
- Green warning light (voltage)
- Panel Dimensions: 10.5″ W x 4.5″ H
- Pre-wired assembly
- Sending units included
- Lightweight plastic housing
- Bolt-on installation
- MPN: 69-3017
