Description
Part Note:

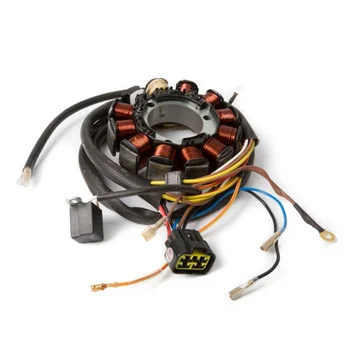

There are two possible stators for many 2002-2003 Polaris models. This stator has a rectangular 4-pins plastic connector. This stator has 12 poles and can only replace a 12-pole stator.
Fits:
| Make | Model | Year | Note |
|---|---|---|---|
| Polaris | ATP 500 4×4 HO | 2004 | |
| Polaris | Magnum 500 2×4 | 2002 | |
| Polaris | Magnum 500 4X4 | 2002-2003 | |
| Polaris | Ranger 500 4X4 | 2003 | Fits Series 10 Ranger; Only fits model code #A10RD50AA |
| Polaris | Ranger 500 6×6 | 1999 | |
| Polaris | Scrambler 500 2×4 | 2002 | |
| Polaris | Scrambler 500 4X4 | 2002-2003 | |
| Polaris | Sportsman 400 4X4 | 2003 | |
| Polaris | Sportsman 400 4X4 | 2004 | Count OE stator poles. Only replaces a 12-pole stator. |
| Polaris | Sportsman 500 4X4 | 2002 | |
| Polaris | Sportsman 500 4×4 HO | 2002-2003 | |
| Polaris | Sportsman 500 6×6 | 2002 |
| Specifications | |
|---|---|
| Compatible Brand: | Fits Polaris |
| Internal Diameter (mm): | 47 |
| External Diameter (mm): | 114 |
| Thickness (mm): | 20 |
| Number of wires: | 7 |
| Number of connectors: | 9 |
| Number of terminals: | 12 |
| Notes: | Rectangular 2×2-pins rubber connectors |
| Number: | 285643 |
Product Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
