BDS Suspension BDS1775F – 03-13 Ram 3/2 C/O w/ 3.5in axle- Dsl

Description

BDS Suspension BDS1775F – 03-13 Ram 3/2 C/O w/ 3.5in axle- Dsl

03-13 Ram 3/2 C/O w/ 3.5in axle- Dsl

Maximize the capability of your 2003-2013 Dodge RAM 2500 and 2003-2012 RAM 3500 4WD diesel trucks with this 3-inch lift kit featuring a FOX 2.5 Coilover conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35″ tires.

r

These kits feature proprietary FOX 2.5 coilover shocks designed to bolt on performance, with increased travel and the ability to soak up the roughest terrain while delivering smooth on-road comfort. Additionally, BDS engineered fixed-length, greaseable, heavy-duty round tubular construction upper and lower control arms that position the axle correctly and adjust for proper caster and pinion angles.

r

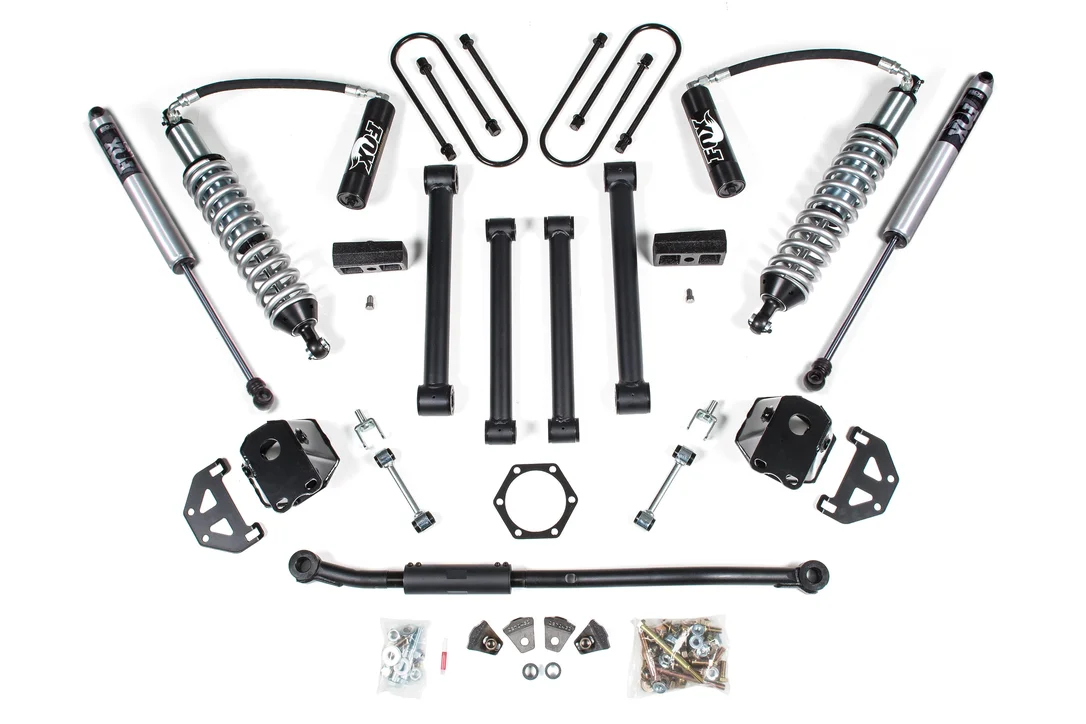

Up front, the lift kit includes FOX 2.5-inch coilover shocks, coilover mounting brackets, a heavy-duty adjustable track bar, fixed-length tubular upper and lower control arms, fixed-length sway bar links with stud eliminator, and precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks. In the rear, this kit uses heavy-duty cast-steel blocks, longer U-bolts, and a matching set of FOX 2.0 Performance shocks.

r

FOX 2.5 Coilovers

r

FOX 2.5 coilovers offer next-level performance for on-road and off-road comfort. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity, keeping your shocks running cool so you can push the limits in rough terrain.

r

HD Adjustable Track Bar

r

Maintain proper handling and steering geometry with the BDS high-strength adjustable track bar, which allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8″ solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

• r
  • FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
  • Heavy duty tubular short arms improve strength, handling and caster control
  • Front high strength progressive rate coil spr

  Shocks Included: YesFront Lift Height: 3Front Lift Method: Coil OverInstallation Difficulty: moderateInstallation Time: 6-8 HrsInstallation Tools: Cut Off Wheel or EquivRear Axle Option: 3_1_2_Inch_AxleRear Lift Height: 2Rear Lift Method: Block
