Artec Industries HS6151 – Full Hydro Weld-On High Steer Arms 05 Plus SuperDuty

Description

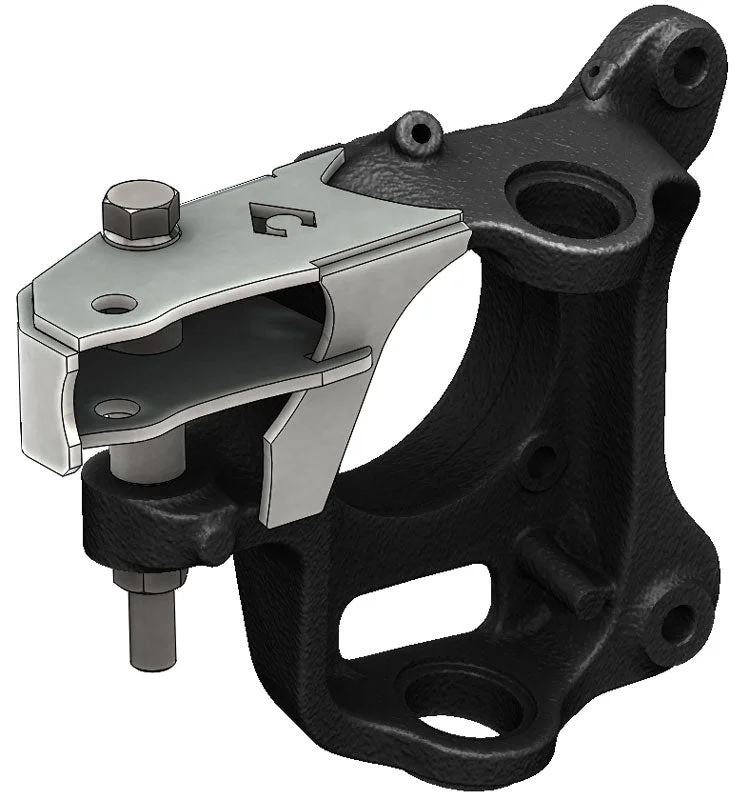

Artec Industries HS6151 – Full Hydro Weld-On High Steer Arms 05 Plus SuperDuty

Full Hydro Weld-On High Steer Arms – 05 plus SuperDuty. AfFordable weld on arms For the 05 plus SuperDuty Knuckles to help eliminate those swap steering issues. Fully fabricated For the best steering geometry and clearances. Engineered For best alignment of tie rod and hydraulic steering ram, providing maximum strength and longevity Includes knuckle bolt Kits (8 inch long bolt, sleeve and stover locking nut) and all internal gusseting. Driver Side Knuckle hole will need to be drilled out to 3/4 inch. Casting remnants on front of knuckle will need to be ground down. Knuckles from 05-10 are slightly different than 11 plus so we’ve etched a trim line on the laser cut part that will need to be trimmed off. Requires welding and minor fabrication. We highly recommend this Kit only be installed by a competent welder.
Features:

• Sold as Each
• Best used with our new Super duty 60 Full Hydro Ram Mount. LINK
• Included Knuckle Bolts and tapered spacers For tight fit and increased strength
• Welds directly to factory knuckles (2005 and up Super Duty)
• 3/4 inch bolt holes For uncompromising steering strength
• Precision Laser Cut from 1/4 inch steel and CNC Bent For accurate fitment
• Minimal modification to OEM knuckle needed
• Rod end bolts not included.
