Aeromotive 13110 – Pro-Series EFI Boost Reference Regulator
Fuel Pressure Regulator – Pro-Series EFI – 30 to 125 psi – In-Line – 10 AN Female O-Ring Inlet – 8 AN Female O-Ring Outlet – 10 AN Female O-Ring Return – 1/8 in NPT Port – Fittings Included – E85 / Gas / Diesel – Each

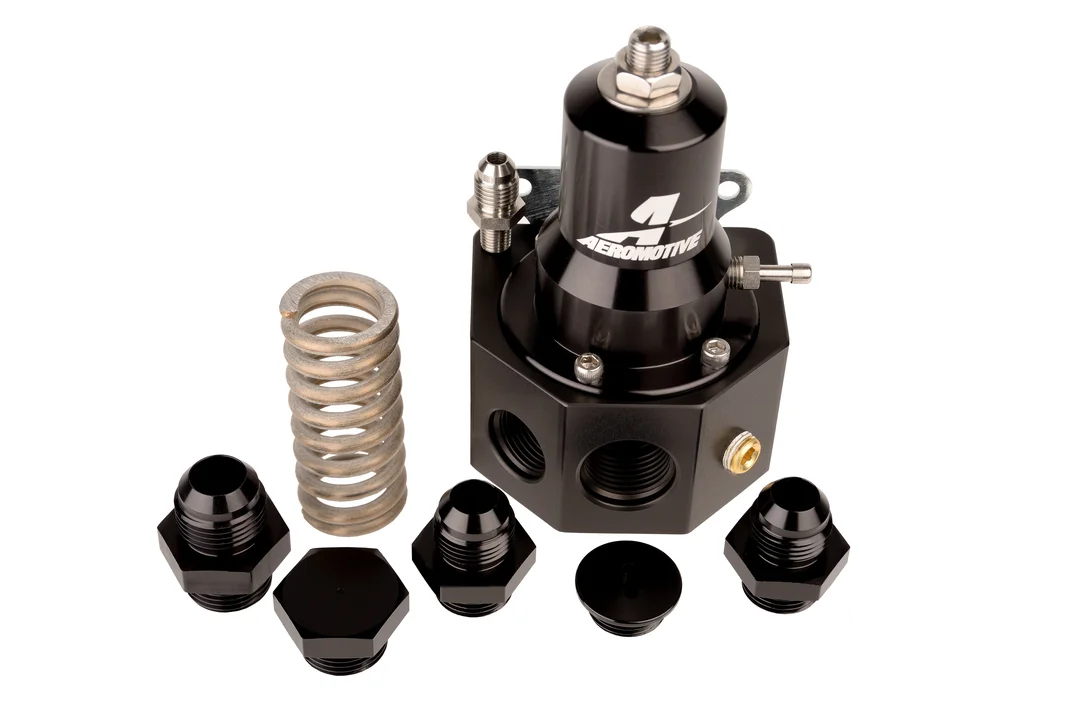

Pro Series Extreme Flow EFI Regulator (3)-8 inlets, (1)-10 inlet, (1)-10 Bypass (Includes fittings, O-rings).
The tuner s choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery, the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power. Adjustable base pressure from 30-75 PSI with the spring installed. Adjustable base pressure from 75-125 PSI with the optional spring included. Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring. Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring. Auxiliary ports available for nitrous applications, pressure gauges and transducers. References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line (Prevents blow-off in high boost application s). Dedicated 1/8NPT port. Includes Aeromotive’s radiused tapered flare fittings: (3) ORB-08 and (1) ORB-10 inlet ports, two with AN-08 flare adapters. (1) ORB-10 return port with AN-10 flare adapter port plugs included. Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap.
Adjustable: YesColor: BlackFuel Delivery Type: Fuel InjectionGauge Included: NoGauge Port: YesGrade Type: PerformanceInlet Gender: FemaleInlet Gender.1: FemaleInlet Port Diameter: ORB-10Marine Approved: NoMaximum Pressure: 75Minimum Pressure: 30Mounting Bracket Included: YesOutlet Port Diameter: ORB-08Port Quantity: 4Pressure Range: 30-75Return Port Diameter: ORB-10Return Port Gender: FemaleVacuum/Boost Port: Yes
