Description
AEM 30-2068-4 – Single K-Type Thermocouple Kit – 4 Pack
K-Type Closed Tip Thermocouple, Inconel sheath, 1/8″ NPT compression fitting
1800° F (982.2°C) Max Temp – Inconel Sheath – 1/8 in. NPT Compression Fitting
AEM’s RTD-Type Temperature Sensor (PN 30-2052) is packed with features that deliver consistent measurement and long life. This AEM EGT Sensor features a closed-tip design that lasts longer than the previous generation’s perforated tip design and the tip is smaller for less intrusion-and less restriction. Inconel-tubing protects the wiring, which is terminated with a high-quality DTM-style 2-pin connector. The sensor reads a temperature range of -40 to 1,560 degrees F (-40 to 850 degrees C), and its thin-film platinum element provides a high degree of accuracy (+/- 0.9% from 536 to 1,560 degrees F). Our RTD-Type Sensor features a 90-degree bend at the sensor tip for easier installation in tight spaces, and it includes a weld-in sensor bung with machined M14x1.5 threads.
- Comes with everything needed to attach to our CAN EGT Module
- Sold in a set of 4
- Perfect solution for viewing and logging various temps including exhaust gas temps (EGTs), cylinder head temps, pre and post intercooler temps, air temps, water temps, fluid temps, disc brake temps and more

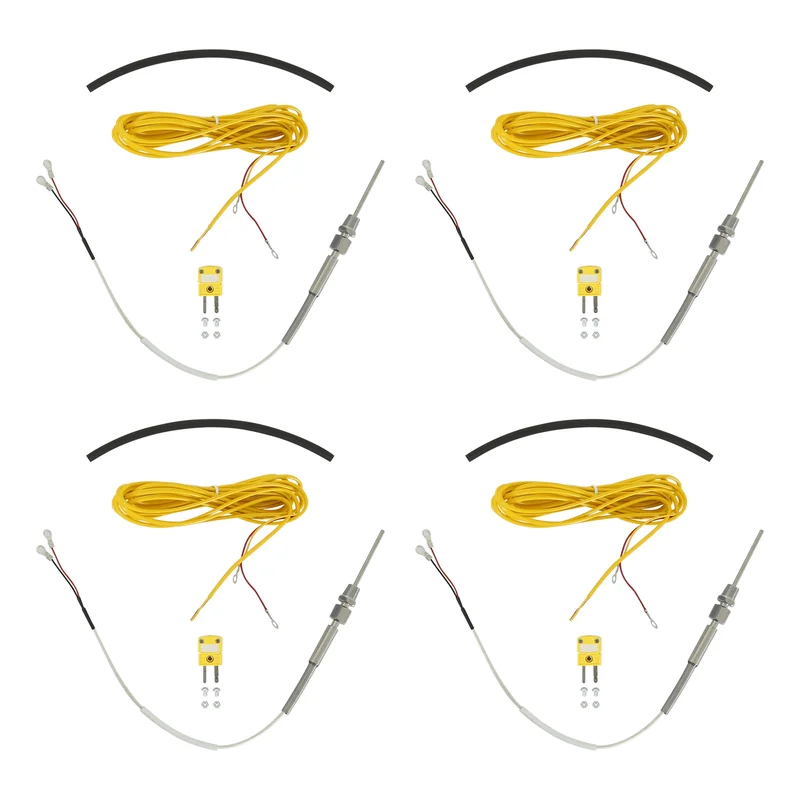

- Includes K-Type Closed Tip Thermocouple, Inconel sheath, 1/8″ NPT compression fitting, 10-foot extension harness
Brand: AEMCategory: Air and Fuel DeliveryConnector Gender: Male FemaleEmission Code: 5Gasket Or Seal Included: YesMaterial: Stainless Steelpart type: Exhaust Gas Temperature (EGT) SensorProduct Type: SensorSub Category: SensorsThread Type: FineWarning: California Proposition 65Warranty: Manufacturer’s 1 Year Warranty
