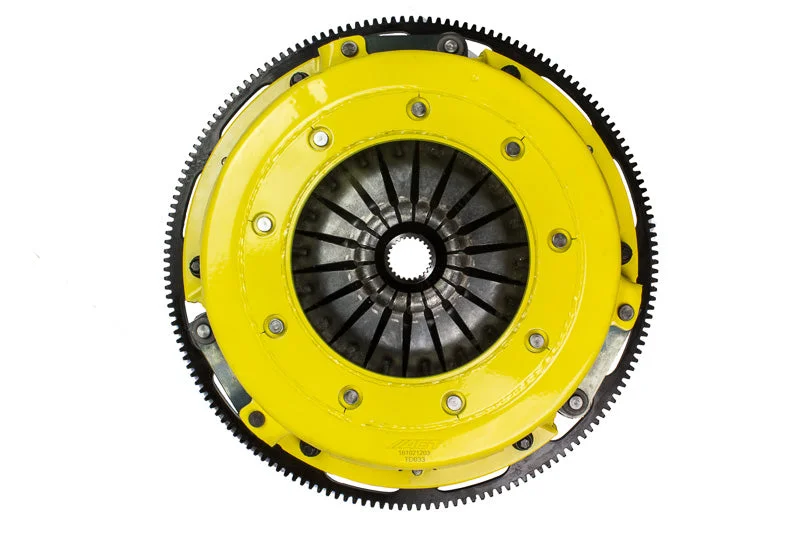

ACT T3S-G09 – 16-17 Chevrolet Camaro SS Twin Disc MaXX XT Street Kit

Description

ACT T3S-G09 – 16-17 Chevrolet Camaro SS Twin Disc MaXX XT Street Kit

ACT Twin Disc Max Extreme Street Clutch Kit

Twin Disc MaXX XT Street Kit

T3S-G09 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may included a pilot bearing and release bearing.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Clutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: NoClutch Master Cylinder Included: NoProduct Weight (lbs.): 43.6SFI: 1.2Torque Capacity (ft/lbs.): 1169Torque Capacity Over OE: 255%Flywheel Included: YesPilot Bushing Included: NoRelease Bearing Included: NoClutch Disc Diameter: 10.5Clutch Disc Diameter: 267Disc Material: OrganicInput Spline Quantity: 26Input Shaft Diameter: 1.125Alignment Tool Included: YesDisc Type Sprung Solid: SolidPressure Plate Bolts Included: NoGrease Included: YesGrade Type: Performance
