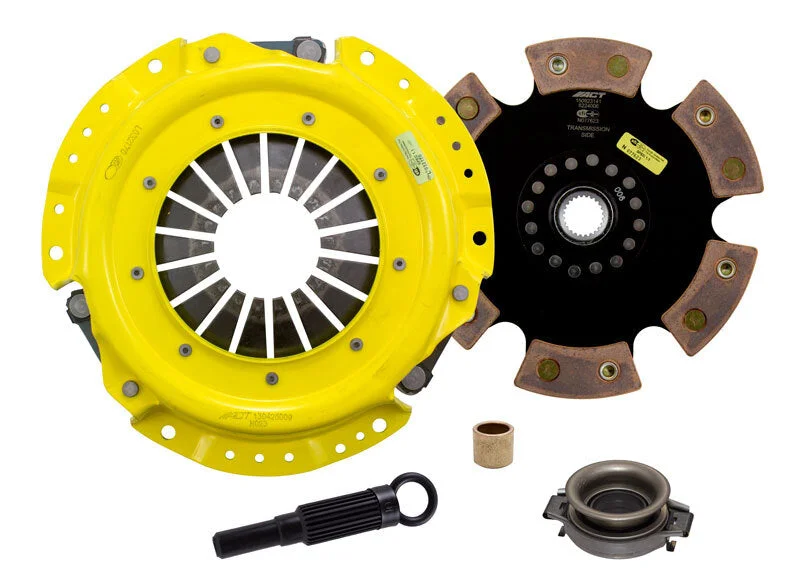

ACT NA1-HDR6 – 1990 Nissan Stanza HD/Race Rigid 6 Pad Clutch Kit

Description

ACT NA1-HDR6 – 1990 Nissan Stanza HD/Race Rigid 6 Pad Clutch Kit

ACT Heavy Duty Race Rigid 6 Pad Clutch Kit

HD/Race Rigid 6 Pad

NA1-HDR6 kit features ACT’s most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Clutch Disc Diameter: 8.8Clutch Disc Diameter: 224Disc Material: CeramicInput Spline Quantity: 24Input Shaft Diameter: 1Alignment Tool Included: YesDisc Type Sprung Solid: SolidPressure Plate Bolts Included: NoGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoClutch Master Cylinder Included: NoProduct Weight (lbs.): 13.6Torque Capacity (ft/lbs.): 350Torque Capacity Over OE: 97%Pilot Bushing Included: YesPressure Plate Type: Heavy DutyRelease Bearing Included: Yes
