ACT BM9-HDSS – 01-06 BMW M3 E46 HD/Perf Street Sprung Clutch Kit

Description

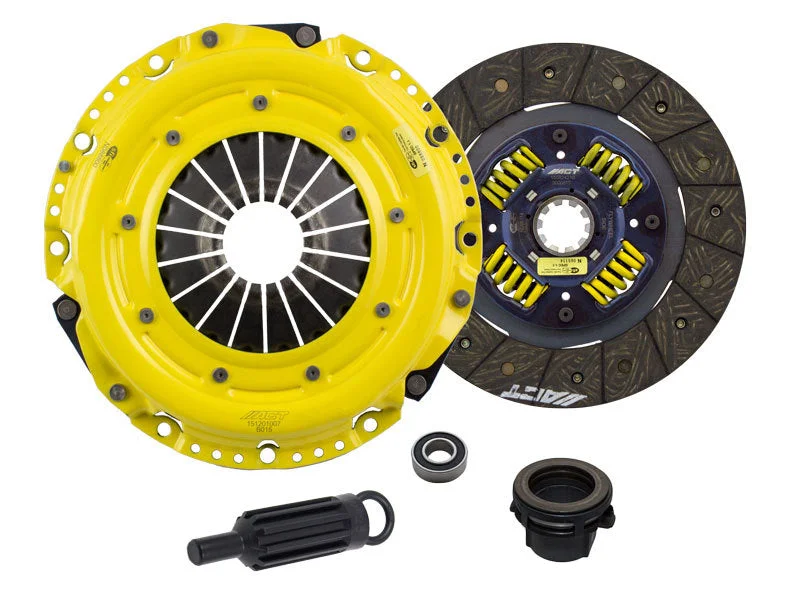

ACT BM9-HDSS – 01-06 BMW M3 E46 HD/Perf Street Sprung Clutch Kit

ACT Heavy Duty Performance Street Sprung Clutch Kit

HD/Perf Street Sprung

BM9-HDSS kit features ACT’s most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Part Fitment Requirement: Must use ACT flywheel with sprung hub discs for proper clearance (flywheel not included). Pressure plate bolts included (M8-1.25 x 20mm).Product Weight (lbs.): 14.9Torque Capacity (ft/lbs.): 465Torque Capacity Over OE: 52%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: Heavy DutyRelease Bearing Included: YesClutch Disc Diameter: 9.4Clutch Disc Diameter: 240Disc Material: OrganicInput Spline Quantity: 10Input Shaft Diameter: 1.375Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: YesGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: YesClutch Master Cylinder Included: No
