Description

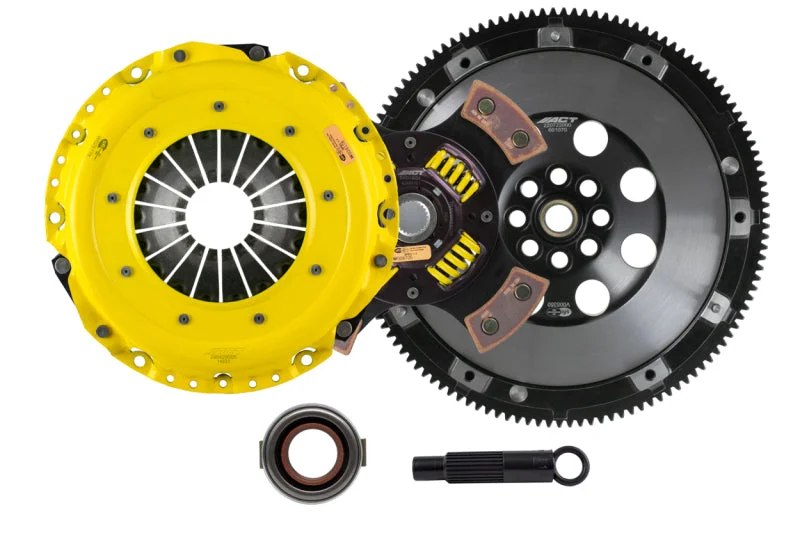

ACT AT2-HDG4 – Acura/Honda J30/J32 HD/Race Sprung 4 Pad Clutch Kit
ACT Heavy Duty Race Sprung 4 Pad Clutch Kit
HD/Race Sprung 4 Pad
AT2-HDG4 kit features ACT’s most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
- “Excellence in Performance”, backed by the best one-year warranty in the industry!
Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: YesGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: YesPilot Bearing Included: YesClutch Master Cylinder Included: NoPart Fitment Requirement: Must use with ACT flywheel (included in kit). Pressure plate bolts included (M8-1.25 x 20mm).Product Weight (lbs.): 32.7Torque Capacity (ft/lbs.): 587Torque Capacity Over OE: 72%Flywheel Included: YesPilot Bushing Included: NoPressure Plate Type: Heavy DutyRelease Bearing Included: YesClutch Disc Diameter: 9.4Clutch Disc Diameter: 240Disc Material: CeramicInput Spline Quantity: 24Input Shaft Diameter: 1.031
